Meet the Roadmachine: the bike that truly does it all. Rooted in endurance, the frame has been revised to perfection and added more compliance-boosting attributes to make this bike your go-to choice for all-day adventures. As our highest performing all-rounder, it's designed to go the distance with resolve. After all, what use is a road without the Roadmachine?
The Roadmachine 01's Premium Carbon frame has been refined with our Integrated Cockpit System, as well as our compliance-enhancing TCC Endurance technologies where it counts. One bike to do it all: ride fast, ride far, on smooth pavement or rough back roads–this is the high-performance all-arounder of BMC's road collection.
A new "D" compliance post is held in place by a clever, integrated clamping system.
BMC FLATMOUNT ADAPTER
The Roadmachine front disc hardware comes equipped with a 140/160mm proprietary flatmount bracket for maximal integration and seamless design.
INTEGRATED COCKPIT SYSTEM (ICS)
The aesthetic simplicity and innovative functionality of the Integrated Cockpit is the epitome of Swiss engineering and design. ICS keeps cables and housing in their place: out of sight.
INTEGRATED SEAT CLAMP
Seamless and functional integrated seatmast clamp.
TUNED COMPLIANCE CONCEPT (TCC) ENDURANCE
The most capable version of our TCC technology: take the edge off the roughest roads to push harder and ride further. The ultimate balance between comfort and performance for a ride that is both forgiving and fast.

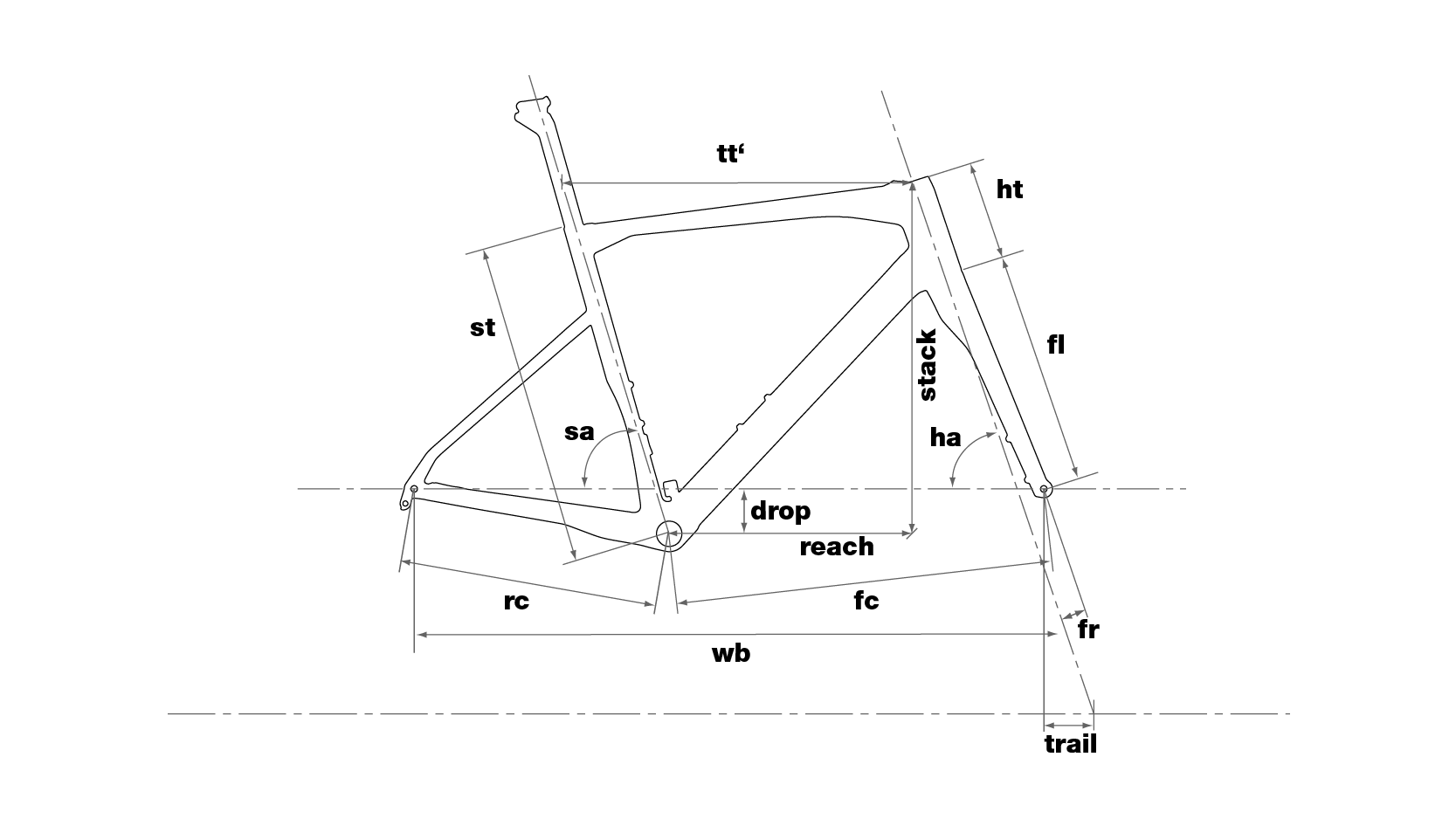

|Rider Height CM||<166||166-174||172-180||178-186||184-192||>190|
|Top Tube MM (tt)||522||532||546||556||568||583|
|Wheelbase MM (wb)||982||999||997||1008||1020||1035|
|Seat Tube Angle (sa)||74.2||74.2||74.2||74.2||74.2||74.2|
|Seatpost Length MM||330||380||380||380||380||430|
|Trail MM (trail)||63||63||63||63||63||63|
|Rear Center MM (rc)||410||410||410||410||410||410|
|Reach MM (reach)||374||382||386||390||394||398|
|Head Tube MM (ht)||112||139||156||181||206||242|
|Head Angle (ha)||71.2||71.2||72||72||72||72|
|BB Drop MM (drop)||71||71||71||71||71||71|
|Stem Length MM||90||90||100||110||110||120|
|Seat Tube MM (st)||420||457||500||522||539||573|
|Post Offset MM||15||15||15||15||15||15|
|Crank Length MM||170||170||172.5||172.5||175||175|
|Fork Rake MM (fr)||50||50||45||45||45||45|
|Front Center MM (fc)||583||599||597||609||621||635|
|Fork Length MM (fl)||375||375||375||375||375||375|
|Bar Width MM||400||420||420||420||420||440|
|Bar Reach MM||70||70||70||70||70||70|
|Frame||Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance / ICS Technology, Stealth Cable Routing / PF86 Bottom Bracket / Integrated Seatpost Clamp / Flat Mount Disc / 12x142mm Thru-Axle|
|Fork||Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance / ICS Technology, Stealth Cable Routing / Flat Mount Disc / 12x100mm Thru-Axle / 50mm Offset (Size 47-51), 45mm Offset (Size 54-61)|
|Rims||CRD-321 Carbon, Tubeless Ready, 35mm|
|Tires||Vittoria Corsa Control, 28mm|
|Crankset||SHIMANO Ultegra 12spd 11-34T|
|Shifters||SHIMANO Ultegra Di2 12spd|
|Front Derailleur||SHIMANO Ultegra Di2 12spd|
|Rear Derailleur||SHIMANO Ultegra Di2 12spd|
|Chain||SHIMANO Ultegra 12spd|
|Brakes||SHIMANO Ultegra, RT-MT800 Rotors (160/140)|
|Handlebars||BMC RAB 02, Ergo Top Shape, Compact Bend|
|Stem||BMC ICS2 - Integrated Cockpit Design|
|Seatpost||Roadmachine 01 Premium Carbon D-Shaped Seatpost / 15mm Offset|
|Saddle||Fizik Argo Tempo R5 (150mm)|
* Subject to change without notice.
|Carbon/Metallic Grey / 51cm||07630027870787||30001326||210000128785|
|Carbon/Metallic Grey / 56cm||07630027870961||30001328||210000128787|
