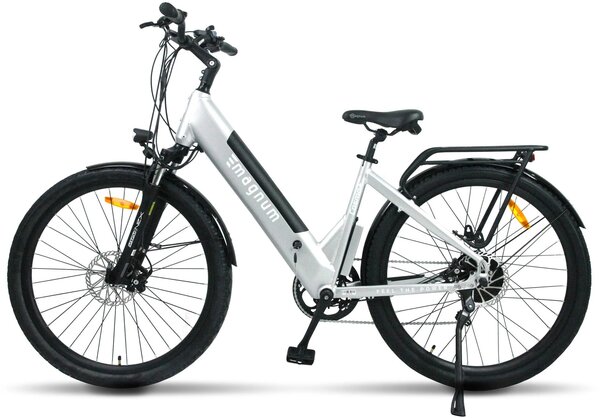

Magnum Bikes Cosmo+

Magnum Bikes Cosmo+
  • Color: Metallic Blue
  • Color: Gunmetal
  • Color: Silver
$1,759.20
$2,199.00
Color:
Metallic Green
Size:
Large
Wheel Size:
700c
Please select options Unavailable

Details

The Magnum Cosmo+ is the road ebike in our popular Cosmo series. The Low Step frame has a fully integrated battery to give the Cosmo+ better balance and a low profile. The power system is 48 Volts driving a 500 Watt motor and a 15Ah battery for the power and range you need to run errands or go on a relaxing bike ride.

Highlights:
- Category: Touring
- Class: Can be configured to a Class 1, 2, or 3 E-Bike.
- Frame Type: Low-step
- Seating: Relaxed
- Perfect For: Paved / Light Trails / Recreation

THE BATTERY.
The heart of the Magnum Cosmo+ is the integrated, long-range 48V / 15Ah / 720Wh Samsung battery that powers rides up to 50 miles long, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

15Ah
- 50 miles (80 Kilometers) Max Range
- 7.5 Hours Charge Time

KENDA 700C ROAD TIRES
Navigate city streets with comfort and durability.

The wide Kenda 700 x 50c tires are comfortable, durable, and great for commuting and city uses. The larger wheel diameter and wide cross-section make them efficient, fast and comfortable.

Sizes:
Seat Tube18" (46 cm)
Reach 15.5” (39 cm)
Stand Over Height 23.25” (59 cm)
Virtual Top Tube Length 23.5” (60 cm)
Min Saddle Height 22” (56 cm)
Max Saddle Height 28" (71 cm)
Width 25.75" (65 cm)
Wheelbase 45.5” (116 cm)
Length 74.5” (189 cm)
Total Weight 60 lbs (27.25 kg)
Battery Weight 10 lbs (4.5 kg)
Recommended Minimum Rider Height 5'2"

Specs

Fork SR Suntour NEX30 Suspension Fork with Lockout and Preload Adjustment
Stem Adjustable Alloy
Tires Kenda 700 x 50c
Brakes Clarks Hydraulic Disc Brakes
Saddle QF Saddle Black
Crankset Aluminum Alloy, 52T, 170mm
Shifters Shimano 7-Speed
Tape/Grips Black Faux Leather
Accessories & Extras Rear rack, front and rear lights included
Motor Bafang Rear Hub-Drive 500W Nominal Output. 25 mph with Pedal Assist, 20 mph with Throttle.
Pedals Wellgo
Battery 48V, 15Ah, 720Wh
Charger 25-50miles per charge.
Controller/Display Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD. Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time. Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode.

* Subject to change without notice.

Videos

Part Numbers

Option UPC Store SKU
Metallic Green / Large / 700c 789554756471 210000128445
