Details
Aero for All
Rise to Speed anywhere. The R-50’s brilliance is its breadth of ability. With supernaturally balanced performance, you’ll find your fast on any road.
Highlights

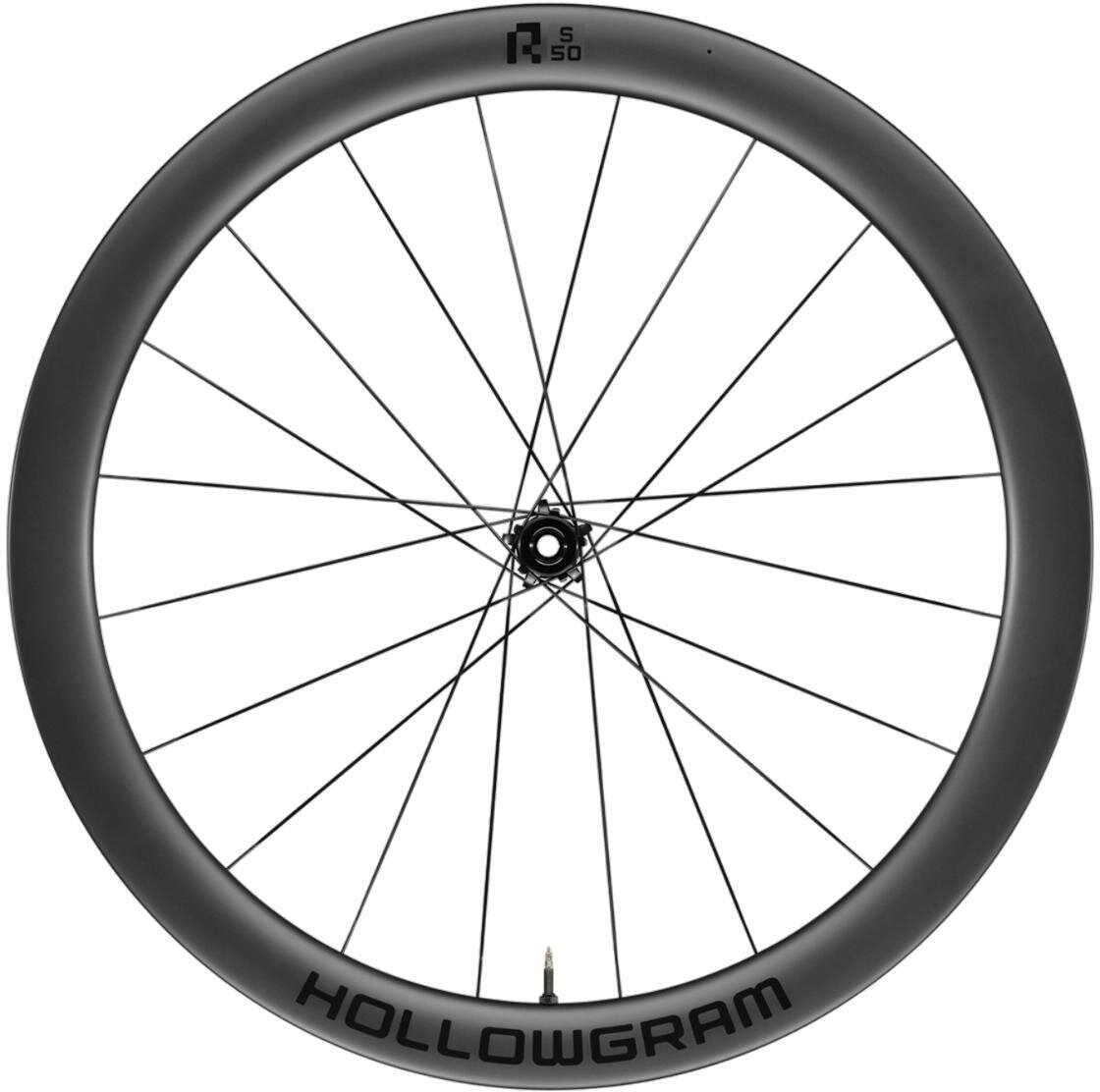

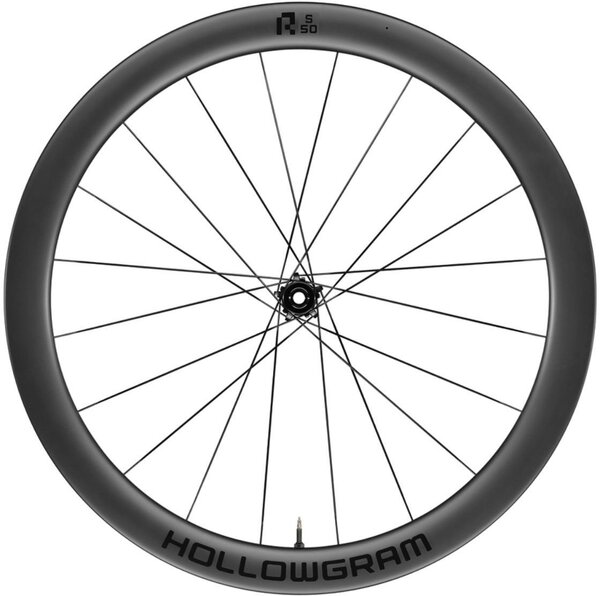

- Developed with D.R.A.F.T. our 50mm deep, 21mm internal/32mm external width carbon rims are aerodynamic, lightweight, tubeless compatible
- Grand Forza double-butted spokes keep it light while staying strong and reliable
- HollowGram hubs feature a small cross-section and sealed cartridge bearings keeping it light and aerodynamic
- At 1620g a pair the R-S 50 is a blend of lightweight and aerodynamic performance
- A limited lifetime warranty to give you peace of mind
- 100x12 thru-axle compatible
Specs
Front Hub | HollowGram Aero, sealed bearing, 12x100mm, centerlock, 20h, straight pull |
---|---|
Rim Depth | 50mm |
Rim Outer Width | 32mm |
Rim Inner Width | 21mm |
Rim Type | Carbon clincher, hooked, tubeless ready |
Nipple Type | Sapim Up side down, brass |
Eff. Rim Diameter | 538mm |
Max Spoke Tension | 100-130 kgf |
Max Tire Pressure | 120 psi |
Brake Type | Disc |
Rider Weight Limit | 100kg/220lbs |
Spoke Count | 20h |
Spoke Length(NDS-DS) | 283mm / 283mm |
Spoke Type | Formula Grand Forza - 2-cross |
Wheel Size | 700c |
Weight | 1620 g (Pair) |
Extras | Tubeless tape, tubeless valves |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
100 x 12mm / Black / 700c | 884603941072 | HP8212U1010 | 210000145608 |
