Details

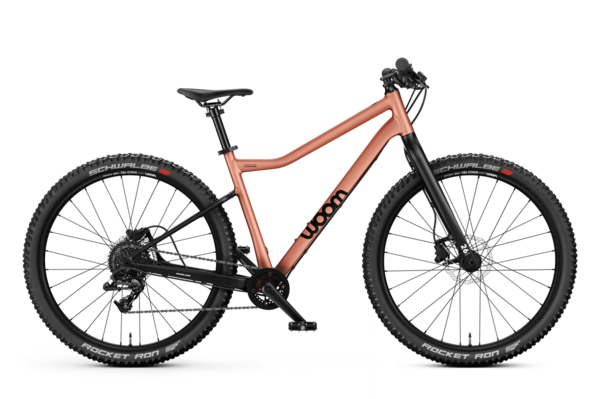

The new 26" woom OFF 6 provides off-road capability in a lightweight package with ergonomics that are designed specifically for children.
Better OFF
The new and improved 26" woom OFF 6 is well equipped and capable of handling almost anything your Rider throws at it, from the trail to gravel roads to paved paths. Stable, responsive, and equipped with high-performance components and tubeless-compatible wheels, the woom OFF 6 provides best-in-class value in its category, and ergonomics designed for growing bodies.
NOTE: You won't be able to upgrade the woom OFF to an air suspension fork later on. If you think your rider would benefit from suspension, consider the OFF AIR.
| Tire/wheel size | 26" |
|---|---|
| Handlebar height | 37.4" |
| Steering angle | 69° |
| Horizontal top tube length | 22.4" |
| Wheelbase | 41.7" |
| Seat tube angle | 71° |
| Minimum saddle height | 30.7" |
| Max. saddle height | 38.2" |
| Crank arm length | 5.9" |
| Handlebar adjustment | Angle +/-15°, Height +/-0.47" |
| Model | Inseam | Height |
|---|---|---|
| woom OFF 4 | 22.8" - 28.7" | 46" - 51" |
| woom OFF 5 | 27.8" - 33.7" | 50" - 57" |
| woom OFF 6 | 30.3" - 37.8" | 55" - 65" |
| woom OFF AIR 4 | 22.8" - 28.7" | 46" - 51" |
| woom OFF AIR 5 | 28.3" - 34.3" | 50" - 57" |
| woom OFF AIR 6 | 30.7" - 38.2" | 55" - 65" |
Specs
| Frame | Frame material: lightweight, high-quality 6061 T6 aluminum with butted and hydroformed tubes 26" wheels Easy-access low top tube to assist dismounting Long wheelbase and low center of gravity to aid balancing New, dropper seatpost-ready frame design Featuring woom-specific molded chainstay protector |
|---|---|
| Fork | Ultralight carbon fork 1 – 1 1/8" tapered steerer tube 100 x 15 mm thru axles Post mount for disc brake |
| Wheels | Tubeless-compatible Alexrims wheelset Aluminum hubs with sealed industrial bearings Thru axles for maximum torsional strength (100 x 15 mm front and 135 x 12 mm rear) 28 G14 spokes, triple-crossed spoking Aluminum nipples |
| Tires | 26 x 2.35" Schwalbe Rocket Ron with ADDIX SPEED rubber compound Quality mountain bike tires with low rolling resistance, maximum grip, good shock absorption and excellent durability Presta valves, tubeless conversion ready |
| Crankset | Lightweight, forged aluminum 5.9" (150 mm) kid-specific cranks with narrow tread (Q-factor) Narrow-wide chainring with 28 teeth in the front Cassette with 11-36 teeth in the back Flat pedals made from fiber-reinforced nylon Chromoly axle and sealed industrial ball bearings |
| Shifters | SRAM X5 trigger shifter |
| Rear Derailleur | SRAM X5 rear derailleur |
| Brakes | Hydraulic disc brakes by Promax Rotor diameter front/back: 160/160 mm Ergonomic brake levers designed for children's hands |
| Handlebars | Wide, ergonomically adapted and lightweight aluminum bars for more control Tapered end to fit child’s hand Sandblasted and silver anodized Width: 665 mm Rise: 20 mm |
| Tape/Grips | Child-friendly thanks to small diameter Single-clamp grip to prevent twisting Safety zone: extra rubber on palm-facing portion of grip for added comfort 100% silicone for maximum grip |
| Stem | Forged aluminum CNC-machined Handlebars attached via two clamps Rise/drop: +/-15° with flip-flop design to adjust handlebar height Length: 50 mm |
| Headset | Fully integrated 1 – 1 1/8" headset Sealed industrial bearings |
| Seatpost | 27.2 x 300 mm Anodized aluminum seatpost with insertion marks that indicate the minimum insertion depth Quick-release seatpost clamp |
| Saddle | Ergonomically designed to fit children's anatomy Streamlined mountain-bike specific saddle design Side protection to lean against walls |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Terra Coppa / One Size / 26-inch | 09120083727081 | 100011-0063-5001 | 210000153698 |
| Black / One Size / 26-inch | 09120083727074 | 100011-0063-8001 | 210000153697 |
