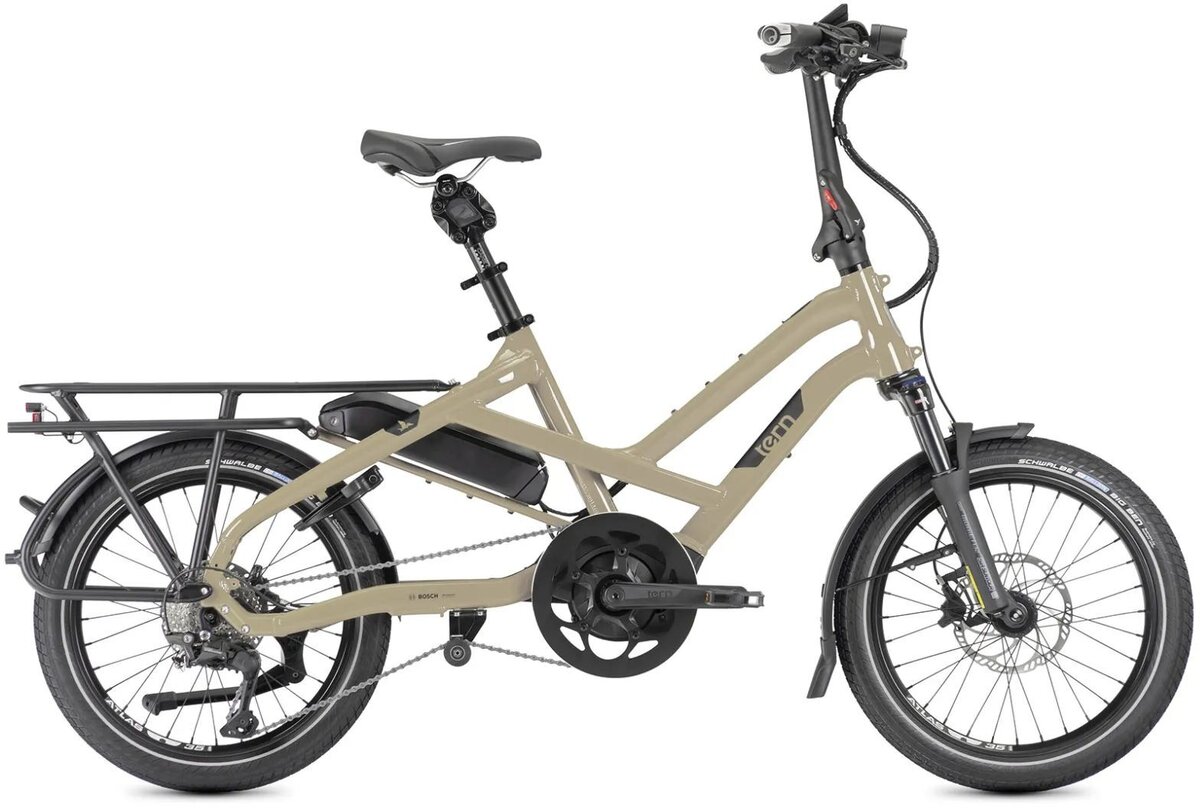

Tern HSD S11 Gen 2
Details
Mighty But Mini
The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.
What makes it an S11?
- Class 3 Bosch Performance Line Sport motor with Bosch
- Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
- Bosch ConnectModule—for the Smart System’s enhanced theft-protection functions like eBike Alarm and eBikeTracking
- Kiox 300 color display that automatically activates eBike Lock when removed from the bike
- 1x11-speed Shimano Deore groupset
- Ultra-bright Ignis Headlight with high/low beam ensures 24/7 visibility, no matter the weather
- Always-on RearStop Brake Light helps you safely signal stops
HSD Highlights
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
- Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
- Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
Specs
| Motor | Bosch Performance Sport, 340% Assist, 75 Nm Torque, Class 3 max speed 28 mph |
|---|---|
| Battery | Bosch PowerPack 545 |
| Display | Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
| Charger | 100-240V, 4A (US) |
| Frame | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg |
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg |
| Headset | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| Rims | Tern Atlas H, wide 35 mm |
| Hubs |
F: Novatec, Thru-axle, sealed bearings R: Novatec, sealed cartridge bearing, disc |
| Spokes | Stainless steel, double-butted |
| Tires | Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification |
| Crankset | Tern HSD custom |
| Bottom Bracket | Motor integrated |
| Shifters | Shimano Deore, 1x11 spd |
| Rear Derailleur | Shimano Deore Shadow+ |
| Cassette | 11-36T, 11 spd |
| Chain | KMC 11 spd, for eBike, EPT corrosion resistant coating |
| Brakes |
F: Magura MT4, hydraulic disc, 180 mm rotor R: Magura MT4, hydraulic disc, 160 mm rotor |
| Handlebars | Tern Sweep, 6061-AL, Tern Andros adapted |
| Tape/Grips | Ergon |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Seatpost | Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm |
| Saddle | Tern Upright by Velo |
| Pedals | Urban with non-slip surface, sealed bearings |
| Integrated Lights |
F: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam R: RearStop Brake Light, Always on |
| Fenders | SKS, stainless hardware |
| Rack(s) | Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity |
* Subject to change without notice.
