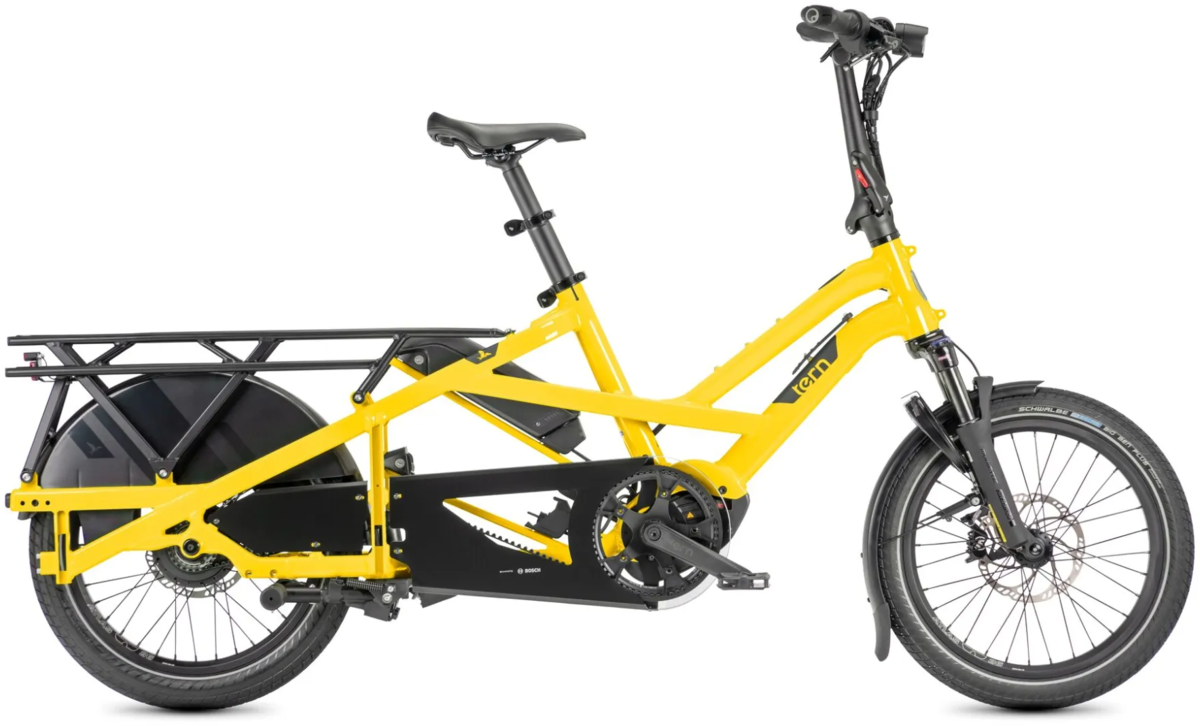

Tern GSD P00 (Gen 3)
Details
What makes it a P00?
- User-friendly Bosch® e-bike system with Purion display helps you stay informed and in control on the road
- Dual-battery compatible, ready to power through heavy use and long distances of up to 207 km (129 mi)
- Silent, smooth, and low-maintenance Gates Belt Drive
- Enviolo Heavy Duty internally geared hub with 380% gear range and twist shifter, offering effortless shifting to tackle various terrains
GSD highlights:
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
Suggested Rider Height: 150 - 200 cm (59.1 - 78.7 in)
Max Rider Weight: 130 kg (286.6 lb)
Max Gross Vehicle Weight: 210 kg (463 lb)
Specs
| Frame | Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg |
|---|---|
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved: 210 kg |
| Wheels | Tern Atlas, heavy duty cargo wheel |
| Hubs |
Front: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings Rear: Enviolo Heavy Duty, 380% continuously variable range, Boost |
| Spokes | Stainless steel |
| Tires |
Front: Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex Rear: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex |
| Bottom Bracket | Motor integrated |
| Crankset | Tern GSD, Gates CDX CNC machined beltring |
| Shifters | Enviolo, Twist |
| Cassette/Freewheel | Gates CDX, precision CNC machined cog |
| Chain | Gates Carbon Drive CDX belt |
| Brakes | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Brake Levers | Magura MT5 e-stop, hydraulic, with brake light sensor |
| Handlebars | Tern Sweep, 6061-AL, Tern Andros adapted |
| Tape/Grips | Ergon |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| Seatpost | Tern VLT (Very Large Telescope) with LightAction levers |
| Saddle | Tern GSD by Velo |
| Pedals | Urban with non-slip surface, sealed bearings |
| Accessories & Extras |
Bell: Pitch Plus, brass Chainguard: Tern GSD, full chain cover Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology Front Light: Ignis Headlight, Ultra wide low beam Rear Light: Rear Stop Brake Light, Always on Fenders: F: Aluminum R: GSD wheel guard Rack(s): Atlas G, 100 kg (220 lb) capacity Frame Lock: ABUS or AXA, keyed-alike with Bosch battery |
| Motor | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 20 mph (US) |
| Battery | Bosch 500 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 500 Wh max capacity |
| Controller/Display | Bosch Purion |
| Charger | 100-240V, 4A (US) |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| School Bus Yellow / One Size / 20-inch | 810067163903 | 12-91-60 | 210000168261 |
| Pearl White / One Size / 20-inch | 810067163484 | 12-91-61 | 210000160602 |
