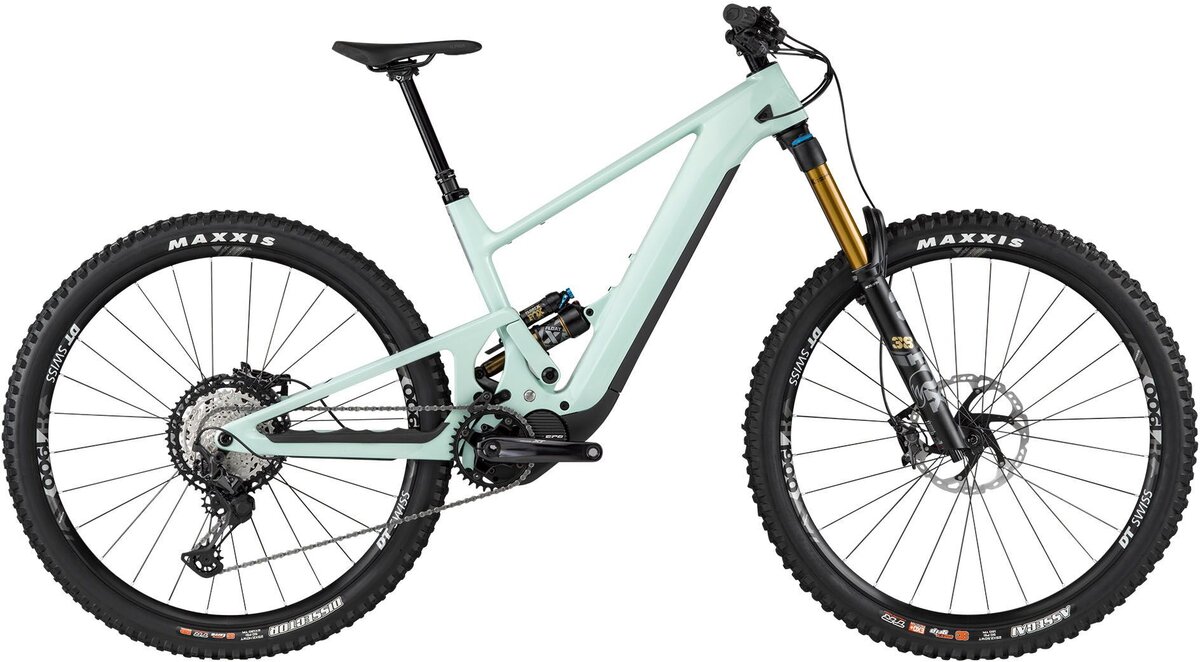

A trail bike that mixes zip with zap, the 4060 Z ST XT makes no excuses for leaving you buzzing. Packing a powerful punch on the ups and the downs it’s built for a good time and a long time. A full-carbon frame, top-tier suspension and baller benchmark component build leave compromise choking on its dust.


Motor SHIMANO Steps EP8 (DU-EP800)
Battery Darfon 36V. 720Wh. SHIMANO Steps service included
Display SHIMANO Steps EP8 Wireless Cycle Computer (SC-EM800)
Remote SHIMANO Steps EP8 Left Switch Unit (SW-EM800-L)
Charger Darfon Smart Plus 100-240V. 4A. US
Frame SCOR 4060 Z full carbon frame | Lower-Link Driven Instant Center Linkage | 140mm rear wheel travel | Boost 148 | SRAM Universal Derailleur Hanger
Fork Fox Float 38 Factory Series E-Bike | 150mm travel | Grip2 damper | Low & high speed compression adjust | Low & high speed rebound adjust | 44mm rake | E-MTB rated
Rear Shock Fox Float X Factory Series | Compression adjust | Rebound adjust | 2 position adjust | Bearing mount
Rims DT Swiss H 1900 Spline | 30mm internal width | Tubeless ready
Hubs DT Swiss 370 | Ratchet LN freehub | Straightpull spoke interface | Boost Spacing
Tires Maxxis Assegai 29 x 2.5" (F) / Maxxis Dissector 29 x 2.4" (R) | Compound: 3C Maxx Grip (F) / 3C Maxx Terra (R) | Casing: EXO+ (F) / Double Down (R) | Tubeless ready
Crankset SHIMANO Deore XT (FC-M8150) | 165mm length | 34T chainring (SM-CRE80-12-B)
Shifters SHIMANO Deore XT (SL-M8100-R)
Front Derailleur SHIMANO Deore XT (RD-M8100) | 12 speed
Rear Derailleur SHIMANO Deore XT (SL-M8100-R)
Cassette SHIMANO Deore XT (CS-M8100-12) | 10-51T
Chain SHIMANO Deore XT (CN-M8100)
Brakes SHIMANO Deore XT | SHIMANO BR-M8120 calipers | SHIMANO BL-M8100 levers
Rotors SHIMANO SM-RT86 rotors. 203mm
Handlebars SCOR Carbon Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5deg up sweep - 7.5deg back sweep
Stem Burgtec Enduro MK3 | 3D forged and fully CNC machined | 31.6mm bar bore | 35mm lenght | 0deg angle
Seatpost Bikeyoke Divine | S 125mm. M/L 160mm. XL 185mm travel | Triggy Alpha lever
Saddle Fizik Terra Alpaca

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Mint / Small 7630027873894 30001629 210000121715
