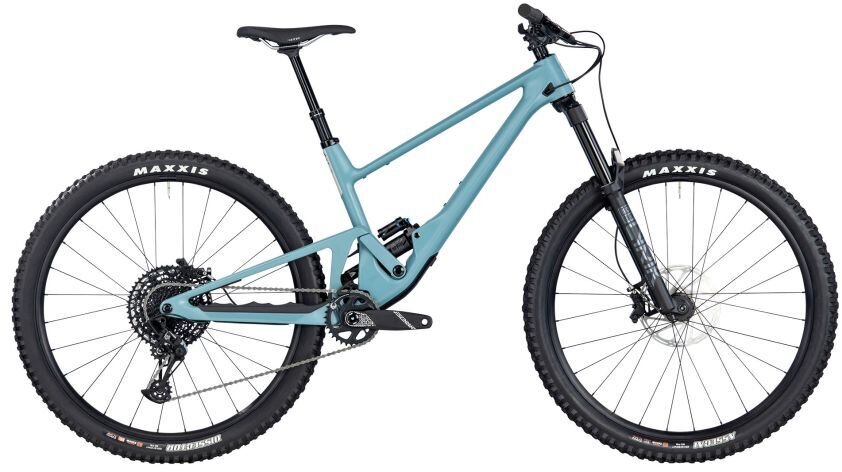

SCOR 4060 ST NX
$3,919.00
$4,899.00
Details
A trail bike that punches way above its class, the 4060 ST NX gives you the confidence to take on the toughest trails right out of the box. A lightweight full-carbon frame with quality suspension components is happy to go with the flow or get deep-down and gnarly. The bulletproof build kit means you’re good to go from the get-go and with everything you need and nothing you don’t, you can focus on having fun on the trail ahead.
Specs
| Frame | SCOR 4060 full carbon frame | Lower-Link Driven Instant Center Linkage | 140mm rear wheel travel | Fully guided internal cable routing | Stash box | Boost 148 | SRAM Universal Derailleur Hanger | Lower ISCG 05 mount / chainguide |
|---|---|
| Fork | RockShox Lyrik Select | 150mm travel | Charger RC damper | DebonAir air spring | Compression adjust | Rebound adjust | 44mm rake |
| Rims/Wheels | XDX-530 | 28 spokes | Sealed cartridge bearings hubs | 6061-T6 alloy rim. welded joint | 30mm internal width | Tubeless ready |
| Hubs | XDX-530 | 28 spokes | Sealed cartridge bearings hubs |
| Tires | Maxxis Assegai 29 x 2.5" (F) / Maxxis Dissector 29 x 2.4" (R) | Compound: 3C Maxx Terra (F) / 3C Maxx Terra (R) | Casing: EXO (F) / EXO+ (R) | Tubeless ready |
| Crankset | SRAM Descendant 6K Eagle | 170mm length | 32T chainring | DUB Interface |
| Chain | SRAM NX Eagle |
| Rear Derailleur | SRAM NX Eagle Trigger |
| Rear Cogs | SRAM NX Eagle (PG-1230) | 11-50T |
| Shifters | SRAM NX Eagle Trigger |
| Handlebars | SCOR Alloy Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5deg up sweep - 9deg back sweep |
| Stem | SCOR Alloy Stem | 3D forged | 31.6mm bar bore | 35mm lenght | 0deg angle |
| Brake Levers | SRAM Code R |
| Brakes | SRAM Code R |
| Saddle | Fizik Terra Alpaca X5 |
| Seat Post | X-Fusion Manic | S 125mm. M 150mm. L/XL 170mm travel |
| Rear Suspension | RockShox Super Deluxe Select+ | RT damper | Rebound adjust | Open / threshold mode | Trunnion mount | Bearing mount |
| Tire Clearance | Width: 64mm Diameter: 750mm |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Blue Steel / Large | 7630027889710 | 30002925 | 210000139894 |
| Blue Steel / X-Large | 7630027889703 | 30002926 | 210000139897 |
