SCOR 4060 ST GX
This item is currently not available.
Details

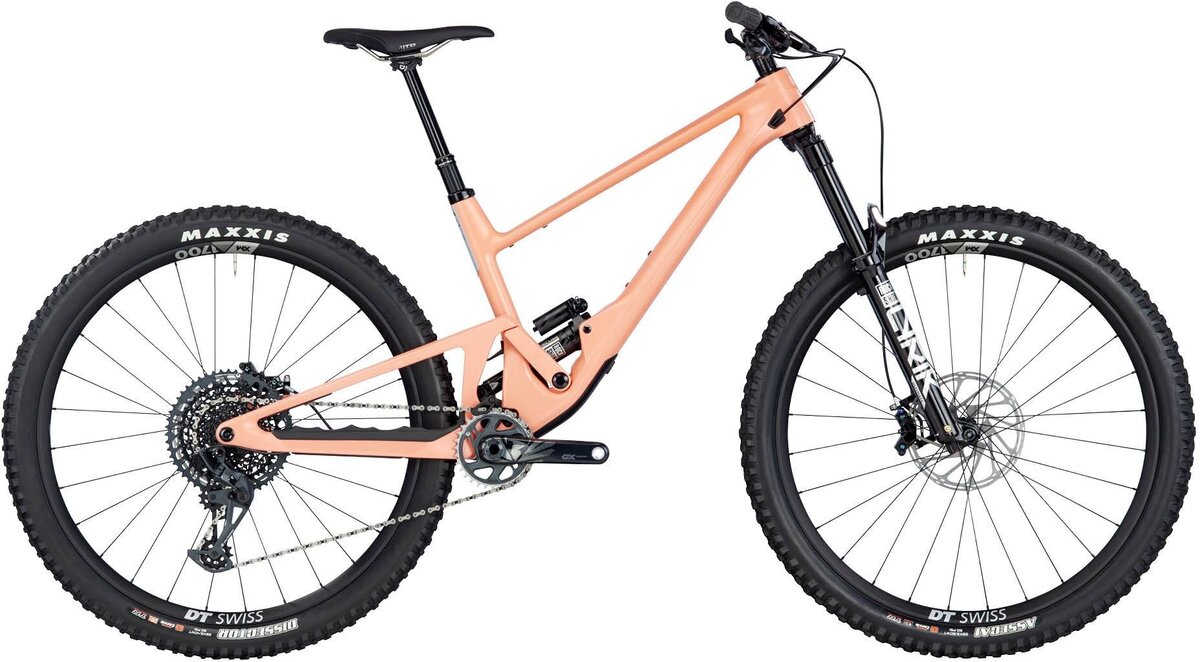

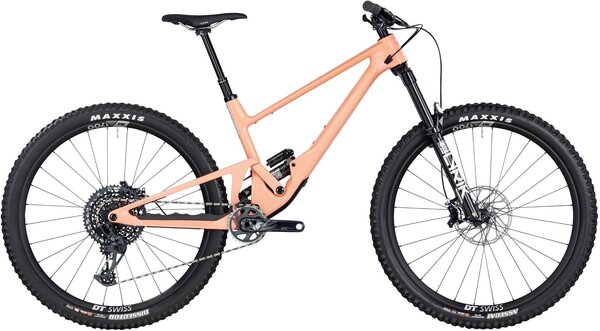

The 4060 ST GX is ready to take on anything – and have a whole heap of fun along the way. A lightweight full-carbon frame equipped with premium suspension gives a wicked fast ride and helps take you to places other trail bikes fear to go. With a no-compromise build kit that majors on performance, this is a bike that comes dressed to impress and ready to rock.
Specs
| Frame | SCOR 4060 full carbon frame | Lower-Link Driven Instant Center Linkage | 140mm rear wheel travel | Fully guided internal cable routing | Stash box | Boost 148 | SRAM Universal Derailleur Hanger | Lower ISCG 05 mount / chainguide |
|---|---|
| Fork | RockShox Lyrik Ultimate RC2 | 150mm travel | Charger 3 RC2 damper. Buttercups Technology (MAY 26 embargo) | DebonAir air spring | Low & high speed compression adjust | Rebound adjust | 44mm rake |
| Rims/Wheels | DT Swiss XM 1700 Spline | 30mm internal width | Tubeless ready |
| Hubs | DT Swiss 350 | Ratchet SL freehub | Straightpull spoke interface | Boost Spacing |
| Tires | Maxxis Assegai 29 x 2.5" (F) / Maxxis Dissector 29 x 2.4" (R) | Compound: 3C Maxx Terra (F) / 3C Maxx Terra (R) | Casing: EXO (F) / EXO+ (R) | Tubeless ready |
| Crankset | SRAM GX Eagle Carbon Lunar | 170mm length | 32T chainring | DUB interface |
| Chain | SRAM GX Eagle |
| Rear Derailleur | SRAM GX Eagle Trigger |
| Rear Cogs | SRAM GX Eagle (XG-1275) | 10-52T |
| Shifters | SRAM GX Eagle Trigger |
| Handlebars | SCOR Carbon Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5deg up sweep - 7.5deg back sweep |
| Stem | Burgtec Enduro MK3 | 3D forged and fully CNC machined | 31.6mm bar bore | 35mm lenght | 0deg angle |
| Brakes | SRAM Code RSC |
| Saddle | Fizik Terra Alpaca |
| Seat Post | Bikeyoke Divine | S 125mm. M/L 160mm. XL 185mm travel | Triggy Alpha lever |
| Rear Suspension | RockShox Super Deluxe Ultimate | RCT damper | Low / high speed compression (open mode) | Rebound adjust | Open / pedal / lock lever | Trunnion mount | Bearing mount |
| Tire Clearance | Width: 64mm Diameter: 750mm |
* Subject to change without notice.
