Rocky Mountain Element Alloy 10

Rocky Mountain Element Alloy 10
$2,559.00
Color:
Grey/Black
Please select options
This item is not permitted to be shipped, however, it can be purchased online and picked up in-store. Please note that bicycles transferred between regions may incur a transfer fee of $95.

Details

Purpose-built to hit the precise sweet spot between lightweight cross country climbing prowess and technical precision, the Element is the best of both worlds and more. New-levels of climbing efficiency guarantees that oh-so-sweet feeling of riding someone off your wheel. Added levels of stability on fast descents and a pseudo-aggressive seat tube angle provides surprising levels of confidence on tight single track and hairy descents. Light. Stiff. Fast. Smooth. Precise. You're now in your Element—always.

- All new frame
- Capable short travel trail bike & singletrack race bike
- Ride-4 Geometry adjustment tailors bike to suit the rider & terrain
- 2 Water bottles on S-XL (1 lg bottle on XS)
- Size XS gets 27.5 wheels and dedicated light rider kinematics

Wheel size:
- Size X-Small: 27.5-inch
- Sizes Small – X-Large: 29-inch

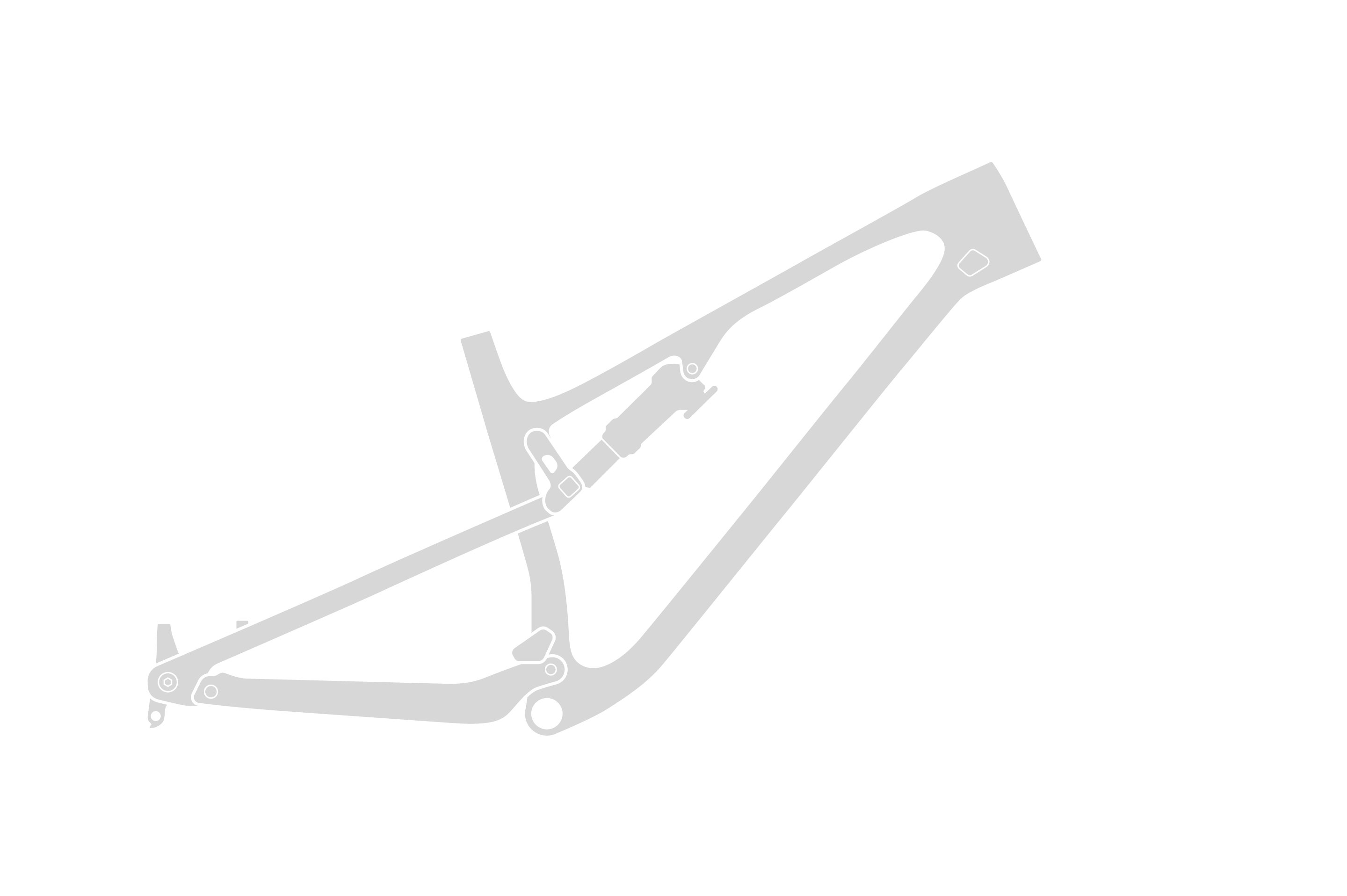

Geometry

Geometry Chart:
SizeX-Small (27.5)Small (29)Medium (29)Large (29)
Ride-4 Position Pos. 1 Slack Pos. 1 Slack Pos. 1 Slack Pos. 1 Slack
Top Tube Horizontal (mm) 542 577 605 632
Head Tube Angle (deg) 64.7 65 65 65
Head Tube Length (mm) 90 105 115 125
Seat Tube Angle (deg) 75.7 76 76 76
Seat Tube Length (mm) 355 380 420 445
Rear Centre (mm) 426 436 436 436
Bottom Bracket Drop (mm) 28 47 47 47
Reach (mm) 397 425 450 475
Stack (mm) 561 606 615 624
Standover Height (mm) 769 810 808 806
Wheelbase (mm) 1127 1173 1202 1231
Sizes:
X-Small 27.5”: 142.5 - 157.5 cm / 4’8” - 5’2”
Small 29”: 157.5 - 170 cm / 5’2” - 5’7”
Medium 29”: 167.5 - 177.5 cm / 5’6” - 5’10”
Large 29”: 175 - 188 cm / 5’9” - 6’2”
X-Large 29”: 185.5 - 198 cm / 6’1” - 6’6”

Specs

Frame FORM Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. RIDE-4 Adjustable Geometry. 120mm Travel. FORM Alloy Rear Triangle
Fork RockShox Judy Silver 130mm | 27.5 = 42mm Offset | 29 = 51mm Offset
Rear Shock RockShox Deluxe Select | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 190x45mm |Size-Specific tune in FAQ
Rims Rocky Mountain TR25 Tubeless | 32H | Tubeless Compatible - Tape | Valves | Sealant Not Incl
Hubs Front Hub Shimano MT410 | 15mm Boost Rear Hub Shimano MT400 Boost 148mm
Spokes 2.0 Stainless
Tires F: WTB Trail Boss Comp 29 x 2.4 | R: WTB Trail Boss Comp 29 x 2.4 |
Bottom Bracket Rocky Mountain Sealed BB92 - Shimano Compatible
Crankset Tektro HD-M275 | Shimano Pad Compatible | F: Tektro 180mm | R: Tektro 180mm
Shifters Shimano Deore 11spd
Rear Derailleur Shimano Deore 11spd
Chain KMC X11-1
Handlebars Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Tape/Grips Rocky Mountain Lock On Light
Stem Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50m
Headset FSA Orbit NO.57B | 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seatpost Rocky Mountain Toonie Drop Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm
Saddle WTB Volt 142
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Grey/Black / X-Small / 27.5-inch 770416412352 B0213XS71 210000119147
Grey/Black / Small / 29-inch 770416412192 B0213SM91 210000119145
Grey/Black / Medium / 29-inch 770416412239 B0213MD91 210000119144
Grey/Black / Large / 29-inch 770416412277 B0213LG91 210000119143
Grey/Black / X-Large / 29-inch 770416412314 B0213XL91 210000119146
