Details
Confidence. Comfort. And plenty of cargo.

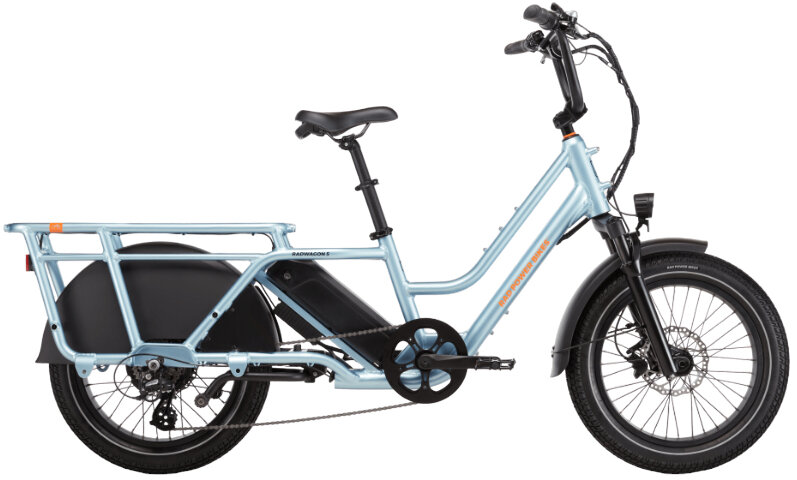

Leave the minivan behind. Our fan-favorite electric cargo bike just had a glow-up. The RadWagon 5 provides a condensed frame for better handling, a plethora of advanced safety features, and more carrying capacity than ever before. But it’s not just better for kids and cargo — it's been revamped to help riders from 4'11" to 6'3" find their fun.
Safety certified
Both the electrical system and the batteries on this model are UL Certified to UL-2849 and UL-2271.
To set a new standard for ebike safety, the Safe Shield Battery features thermal-resistant technology, which means that each cell is encapsulated by a unique heat-absorbing resin designed to prevent an accident from escalating.
All eyes on you
All 2024 models feature a bright 200 lumen headlight for safer night riding and rear-facing turn signals that let cars, pedestrians, and fellow cyclists know your next move.
Ride rain or shine
Our 2024 models are built to handle the rain. With industry-leading IPX6 weather-protection, they can withstand high-pressure, heavy water splashes. And for added safety, they’re equipped with hydraulic disc brakes to ensure all-weather stopping ability.
Reliability on wheels
Keep the ride going. This model features a thru axle to ensure a strong, safe, and secure wheel system.
Specs
Battery | 15Ah 720 Wh Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271 |
---|---|
Display | Rad custom color display |
Pedal Assist | Torque sensor, 5 PAS Levels, plus a zero assist option |
USB Ports | One USB-C port, located on display |
Class | Class switchable 1 to 3. Ships in Class 2 status. |
Hub Motor |
Rear hub 750W, 90 Nm Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. |
Range | Estimated 20-60 miles per charge |
Charger | 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
Lights |
Auto-on feature Front: 200 lumens LED headlight with built-in reflector Rear: Integrated taillight with brake light and turn signals |
Throttle | Half twist throttle |
Bell | Yes |
Brake Rotors | 180 mm x 2.3mm |
Fenders | Full coverage front and rear, plus integrated wheel cover |
Freewheel/Cassette | 7-speed freewheel, 11-34T |
Handlebar | Aluminum, 680 mm wide |
Rear Rack | Integrated, 120 lb (54.4 kg) carrying capacity |
Seatpost Clamp | 40 mm |
Tires | Kenda 20" x 3.3" |
Brake System | Tektro Hydraulic Disc HD-E395 |
Crank Set | 50T with dual sided chain ring cover, 170mm crank arms |
Fork | RST Guide suspension fork, 45mm travel, tapered steerer tube, thru axle |
Gearing | 1x7 speed |
Kickstand | Dual leg center stand, spring loaded, steel |
Saddle | Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides |
Shifter | Shimano, 7-speed thumb shifter |
Brake Pads | Tektro Semi-Metallic E11.11 |
Derailleur | 7-speed Shimano |
Frame | Aluminum |
Grips | Ergonomic rubber comfort grips |
Pedals | Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading |
Seatpost | 390 mm x 27.2 mm |
Stem | 35mm A-head |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Metallic Blue / One Size | 102-00045 | 210000152085 |
Black / One Size | 102-00046 | 210000152086 |
