Details
Rugged good looks are just the beginning.

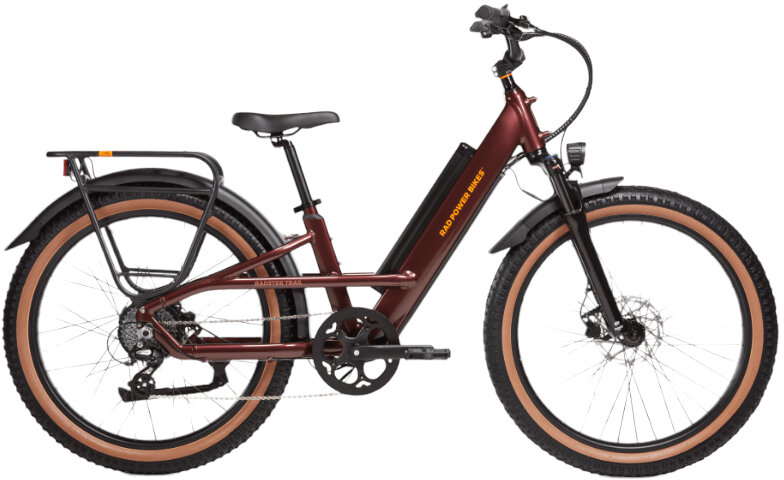

The Radster Trail is an electric off-road bike with the power to do anything, and the range to go anywhere. The 100 Nm motor makes quick work of hills, the 28 mph top speed promises fast-paced fun, and with two frame sizes for a personalized fit, it’s so comfortable that you’ll barely feel like you’re roughing it.
Safe Shield
Both the electrical system and the batteries on this model are UL listed to UL-2849 and UL-2271.
To set a new standard for ebike safety, the Safe Shield Battery features thermal-resistant technology, which means that each cell is encapsulated by a unique heat-absorbing resin designed to prevent an accident from escalating.
All eyes on you
All 2024 models feature a bright 200 lumen headlight for safer night riding and rear-facing turn signals that let cars, pedestrians, and fellow cyclists know your next move.
Ride rain or shine
Our 2024 models are built to handle the rain. With industry-leading IPX6 weather-protection, they can withstand high-pressure, heavy water splashes. And for added safety, they’re equipped with hydraulic disc brakes to ensure all-weather stopping ability.
Reliability on wheels
Keep the ride going. This model features a thru axle to ensure a strong, safe, and secure wheel system.
Specs
Battery | 15Ah 720 Wh Safe Shield Advanced Semi-Integrated Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271 |
---|---|
Display | Rad custom color display |
Pedal Assist | Torque sensor, 5 PAS Levels, plus a zero assist option |
USB Ports | One USB-C port, located on remote |
Charger | 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
Hub Motor |
Rear hub 750W, 100 Nm torque Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. |
Range | Estimated 25-65 miles per charge |
Class | Class switchable 1 to 3. Ships in Class 2 status. |
Lights |
Auto-on feature Front: 200 lumens LED headlight with built-in reflector Rear: Integrated taillight with brake light and turn signals |
Throttle | Half twist throttle |
Bell | Yes |
Brake Rotors | 180mm x 1.8mm |
Fenders | Front and full rear alloy mudguard |
Freewheel/Cassette | 8-speed freewheel 11-34T |
Handlebar | Aluminum, 710mm wide |
Rear Rack | Integrated, 55 lb (25 kg) carrying capacity |
Seatpost Clamp | 38.1 mm |
Tires | Kenda Havok 27.5" X 3.0" with puncture protection and tan sidewall |
Brake System | Tektro Hydraulic Disc E350 |
Crank Set | 50T with dual sided chain ring cover, 170mm crank arms |
Fork | SR Suntour hydraulic suspension fork, 80mm travel, tapered steerer tube, thru axle |
Gearing | 1x8 speed |
Kickstand | Side mounted, adjustable angle kickstand |
Saddle | Padded sport saddle with shallow anatomic cut-out and contoured sides |
Shifter | Shimano 8-speed thumb shifter |
Brake Pads | Tektro semi-metallic P20.11 |
Derailleur | Shimano 8-speed |
Frame | Aluminum |
Grips | Ergonomic rubber comfort grips |
Pedals | Alloy Platform, Boron axle with reflectors, standard 9/16" X 20 TPI threading |
Seatpost |
Regular: 350 mm x 31.6 mm Large: 400 mm x 31.6 mm |
Stem | 40mm A-head |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Copper Red / Regular | 109-00005 | 210000152103 |
Copper Red / Large | 109-00007 | 210000152105 |
