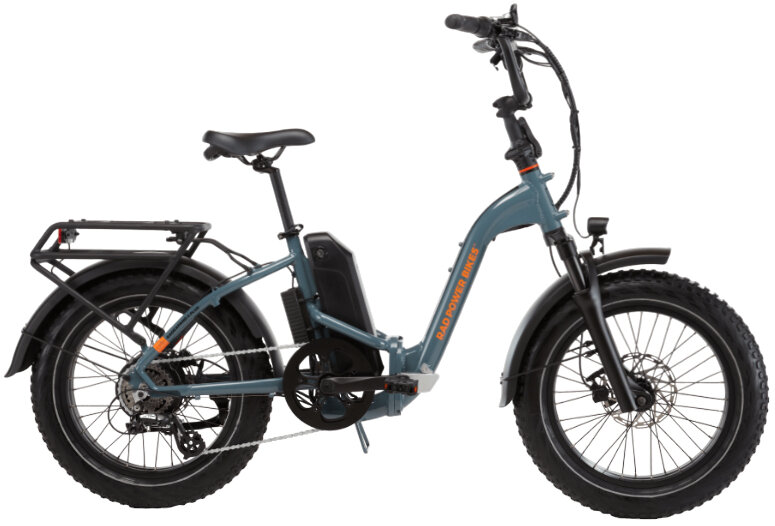

Rad Power Bikes RadExpand 5 Plus

Rad Power Bikes RadExpand 5 Plus
  • Color: Slate Blue
  • Color: Stone Tan
$2,269.00
Color:
Size: One Size
Please select options Unavailable
This item is not permitted to be shipped to your home; however, it can be purchased online and picked up at any of our stores.

Details

The folding bike. Gone futuristic.
Rad Power Bikes has taken the classic RadExpand folding bike and enhanced it with all-new tech, impressive range, and a collection of features that make it more comfortable, capable, and unique. Tackle tougher terrain with a hydraulic front suspension fork, and enjoy smoother rides wherever you wander with the all-new torque sensor that responds to the way you ride.

Safety certified
Both the electrical system and the batteries on this model are UL Certified to UL-2849 and UL-2271.
To set a new standard for ebike safety, the Safe Shield Battery features thermal-resistant technology, which means that each cell is encapsulated by a unique heat-absorbing resin designed to prevent an accident from escalating.

All eyes on you
All 2024 models feature a bright 200 lumen headlight for safer night riding and dual turn signals that let cars, pedestrians, and fellow cyclists know your next move.

Ride rain or shine
With industry-leading IPX6 weather-protection, they can withstand high-pressure, heavy water splashes. And for added safety, they’re equipped with hydraulic disc brakes to ensure all-weather stopping ability.

Reliability on wheels
Keep the ride going. This model features a bolt-on axle to ensure a strong, safe, and secure wheel system.

Specs

Battery 15Ah 720 Wh 15Ah Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL certified to UL-2271
Display Rad custom color display
Pedal Assist Torque sensor, 5 PAS Levels, plus a zero assist option
UL Status UL Certified to UL 2849 and UL 2271
Charger 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
Hub Motor Rear hub 350W, 64 Nm torque
Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.
Range Estimated 20-60 miles per charge
USB Ports One USB-C port, located on display
Class Class switchable between 1 and 2. Ships in Class 2 status.
Lights Auto-on feature
Front: 200 lumens LED headlight with built-in reflector
Rear: Integrated taillight with brake light and turn signals
Throttle Half twist throttle
Bell Yes
Brake Rotors 180mm x 2.3mm
Fenders Full coverage front and rear fenders
Freewheel/Cassette 7-speed freewheel, 14-32T
Handlebar Aluminum, 680 mm wide
Rear Rack Integrated, 59 lb (27 kg) carrying capacity
Seatpost Clamp 31.8 mm
Tires CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip
Brake System Hydraulic Disc, Gemma GA-1000B
Crank Set 48T with dual sided chain ring cover, 170mm crank arms
Fork Exsho STRONG-C hydraulic suspension fork, 50mm travel, bolt-on axle
Gearing 1x7 speed
Kickstand Side mounted, adjustable angle kickstand
Saddle Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides
Shifter Shimano 7-speed thumb shifter
Brake Pads Gemma Semi-Metallic G2
Derailleur 7 speed Shimano
Frame Aluminum
Grips Ergonomic rubber comfort grips
Pedals Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading, folding
Seatpost 390 mm x 27.2 mm
Stem Folding stem raiser with 45mm A-Head stem

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Slate Blue / One Size 103-00056 210000152090
Stone Tan / One Size 103-00055 210000152089
