Pinarello Dogma F G112 - Red Etap AXS - Peak 4550 Wheels

Pinarello Dogma F G112 - Red Etap AXS - Peak 4550 Wheels
  • Color: Luxter Blue
  • Color: Luxter Red Gold
$15,500.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

DESIGN THE EXCEPTIONAL.

We've always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion between our head designers and we believe the DOGMA F achieves the perfect blend of the two.

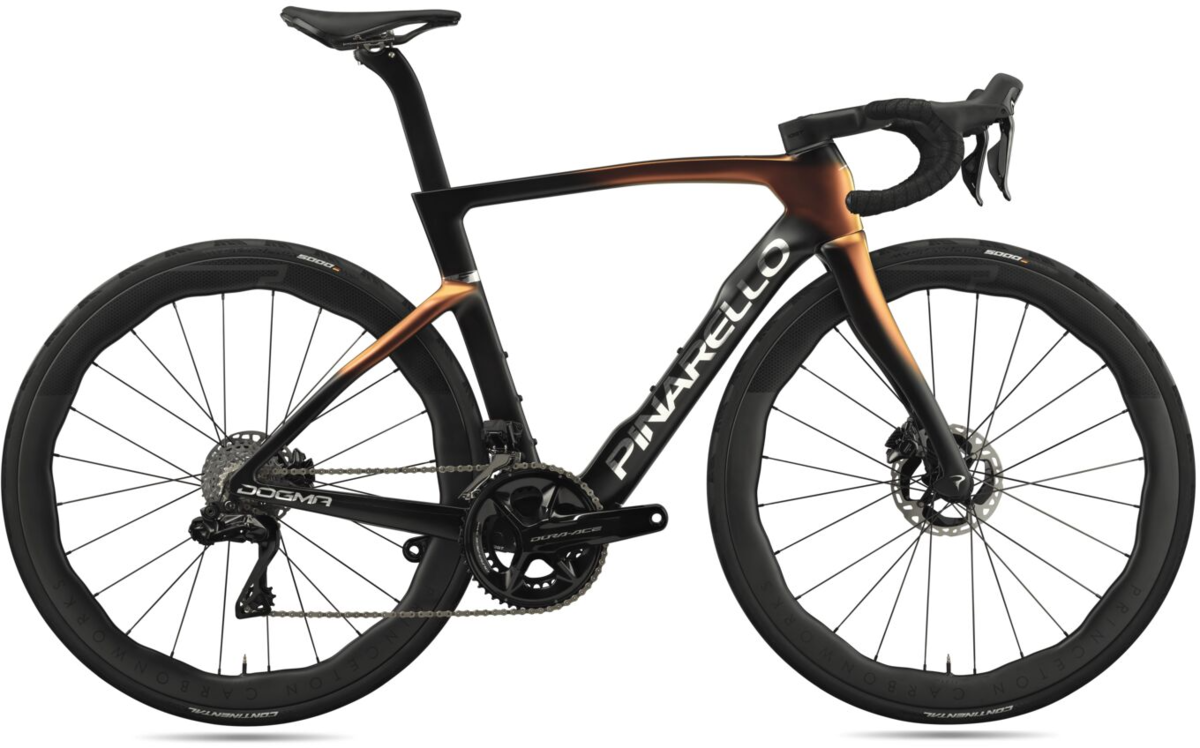

Image for color reference only.

Geometry

Sizes:
CECCLA [°]B [°]PTDRGREACHSTACK
425 430 500 74.4 69.5 407 102 67 47 373 351.5 502
450 465 515 74.4 70.5 407 109 72 47 373 365.4 517.3
465 500 525 74 71.4 407 114 72 47 373 372.2 525.2
485 515 535 73.7 72 407 119 72 47 373 378.2 532.1
500 530 545 73.7 72.5 407 128 72 47 373 383.3 542.4
510 540 550 73.4 72.8 408 136 72 47 373 385.3 551
520 550 557 73.4 72.8 408 147 72 47 373 389.2 561.5
525 560 565 73 73.2 409 154.5 72 47 373 390.8 570.1
540 575 575 73 73.7 409 168 72 47 373 396.7 584.8
560 595 587 72.4 73.4 409 204 67 47 373 393.4 613.2
600 620 620 72 73.4 411 244 67 47 373 410 651.6

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

Specs

Frame TorayCa M40x
Fork F Onda Fork
Wheels Princeton Peak 4550
Tires Goodyear VectorR NSW 30mm
Bottom Bracket SRAM Dub Italian
Crankset SRAM Red E1 48-35T PM
Shifters SRAM Red AXS E1
Front Derailleur SRAM Red AXS E1
Rear Derailleur SRAM Red AXS E1 Max 36T
Cassette/Freewheel SRAM Red AXS E1 10-36T
Chain SRAM Red AXS E1
Brakes SRAM Red AXS E1 10-36T
Handlebars Talon Ultra Fast 1k
Tape/Grips MOST Ultragrip Evo 3mm - Black
Stem Talon Ultra Fast 1k
Seatpost Carbon Aero Seatpost
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Luxter Blue / 55cm / 700c C1961290200-30669 210000150779
Luxter Red Gold / 54cm / 700c C1961290200-31166 210000150746
