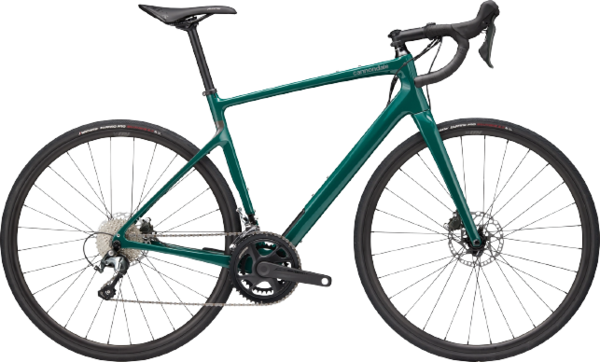

Cannondale Synapse Carbon 4

Cannondale Synapse Carbon 4
$2,400.00
Color:
Pine
Size:
54cm
Please select options

Details

Road Reimagined. Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with Synapse—our most comfortable, all-around, up-for-anything, pure road machine.

Where it thrives
The open road, up & down hills, rough pavement

What it's built for
Comfort, handling, going long

Geometry

Geometry Chart:
SIZE48cm51cm54cm56cm58cm61cm
Wheel Size 700c 700c 700c 700c 700c 700c
A Seat Tube Length (cm) 40.7 44.3 48 52 55 59
B Top Tube Horizontal (cm) 53.3 54.4 55.5 56.7 57.9 59.8
C Top Tube Actual (cm) 51 52.1 53.3 54.7 56 57.9
D Head Tube Angle 71.3° 71.4° 73.1° 73.2° 73.3° 73.4°
E Seat Tube Angle 73.0° 73.0° 73.0° 73.0° 73.0° 73.0°
F Standover (cm) 71.2 74.2 77.3 78.7 83.3 86.8
G Head Tube Length (cm) 10.9 13 14.3 16.4 18.7 21.8
H Wheelbase (cm) 99.1 100.2 98.7 99.8 101.1 102.8
I Front Center (cm) 58.8 59.8 58.3 59.4 60.6 62.3
J Chain Stay Length (cm) 41.5 41.5 41.5 41.5 41.5 41.5
K Bottom Bracket Drop (cm) 7.5 7.5 7.3 7.3 7 7
L Bottom Bracket Height (cm) 27 27 27.2 27.2 27.5 27.5
M Fork Rake (cm) 5.5 5.5 4.5 4.5 4.5 4.5
N Trail (cm) 5.9 5.8 5.8 5.7 5.6 5.6
0 Stack (cm) 53 55 57 59 61 64
P Reach (cm) 37.1 37.6 38.1 38.7 39.3 40.2
Sizes:
SIZERIDER HEIGHT
48 5'2" to 5'6"
51 5'5" to 5'9"
54 5'7" to 5'11"
56 5'9" to 6'1"
58 6'0" to 6'4"
61 6'3" to 6'8"

Specs

Frame Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru-axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
Fork Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts
Headset Synapse Sealed Bearing, integrated, 1-1/4"-1-1/8"
Front Derailleur Shimano Tiagra, braze-on
Rear Derailleur Shimano Tiagra GS
Rear Cogs 11-34, 10-speed
Shifters Shimano Tiagra hydraulic disc, 10-speed
Handlebars Cannondale 3, 6061 Alloy, Compact
Stem Cannondale 3, 6061 Alloy, 31.8, 7°
Brakes Shimano Tiagra hydraulic disc, 160/160mm RT64 rotors
Saddle Fizik Aliante Delta, S-alloy rails
Seat Post Cannondale 3, 6061 Alloy, 27.2 x 350mm

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Pine / 54cm C12402U3054 210000123988
