Details
All In to Go All Out
A pure gravel race machine focused on one thing: taking the lead and staying there. Ok, two things…
Model Description

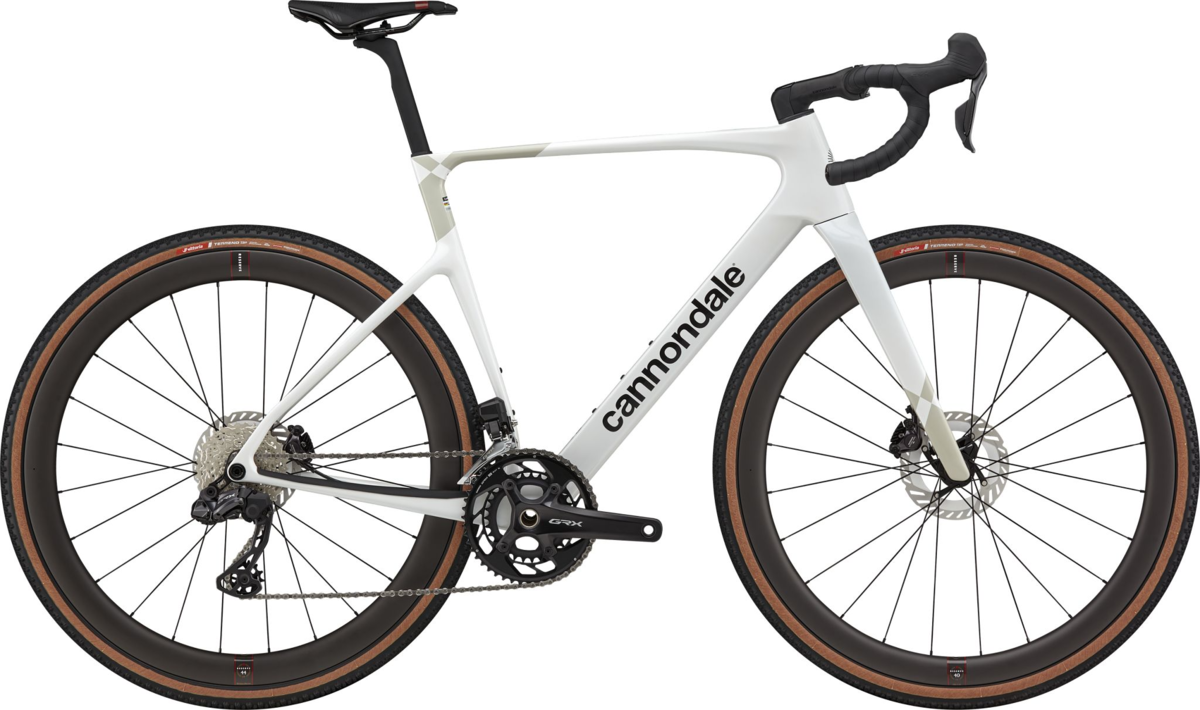

Precision Meets Power. SuperX 2 is a masterclass in controlled chaos. The lightweight carbon frame pairs perfectly with Reserve GR wheels, designed to sail through gravel and eat up km’s. Shimano GRX Di2 electronic shifting is lightning-fast and smooth-as-silk, and hydraulic disc brakes to keep control at your fingertips. Vittoria Terreno tires deliver maximum grip on race day, while aero tube shapes cut through wind. Every detail of SuperX 2 makes this bike a purebred racer, bound for the top step.
What it's for
Elite gravel racing, KOM hunting, Going like hell
Highlights
- Super light, low-drag, SuperX carbon frameset, backed by our Lifetime Warranty
- Flawless shifting from Shimano’s top-flight electronic gravel groupset, GRX Di2 825
- Powerful, controlled braking from Shimano GRX 820 hydraulic disc brakes with CL800 rotors
- Reserve’s exceptional 40 I 44 GR carbon gravel wheels with DT Swiss 370 hubs. Light, durable, and oh-so-fast
- Our sleek, cable-guiding, Conceal stem, with lightweight, ergonomic Vision Trimax Aero Alloy bars
- Vittoria Terreno T50, 700x40c, tubeless ready tires offer unparalleled speed and capability across a wide range of surfaces
Fast & Light
Our KOM-winning road tech meets Unbound-winning engineering. SuperX is super aero and light to stay ahead of the pack in this rapidly -evolving era of high-speed, elbow-to-elbow gravel racing. With gravel race speeds averaging well over 35 km/h, SuperX brings a whole lotta free speed over any distance.
Gravel Glider, Not Grinder
SuperX’s sophisticated carbon construction smooths out the rough, floating above the gravel to keep you cranking. Specially constructed flex zones in the seat tube, rear triangle, and top tube work as a system with the D-shaped seatpost to absorb shock and vibration, keeping your mind and body fresher longer.
Handle It
Take the faster line. Pass on the inside. Lay off the brakes and let 'er fly. With its race-proven geometry, OutFront steering design, and finely calibrated frame stiffness, the SuperX’s handling blends stability and precision in a way that takes the drama out of clutch moments, letting you hold your line while staying on the gas.
Built to Take It. Tuned for You.
SuperX’s Proportional Response carbon construction is tailor made for gravel racing and for you. Fully customized by size, precisely oriented layers of different types and moduli of carbon fibers deliver an ideal balance of weight, stiffness and durability for every rider. All backed by our lifetime guarantee.?
Get ‘Crossed Up
Is cyclocross your thing? SuperX has you covered. Throw on some 33c tires and hit it. With its straight-line speed, planted handling, and massive mud clearance, SuperX loves to battle it out between the tape. Oh, and the flat top tube is pretty nice on the shoulders too.
Size | 46 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c |
Seat Tube Length (cm) | 44.9 | 48.8 | 52.4 | 54.6 | 56.6 | 58.9 |
Top Tube Horizontal (cm) | 51 | 52.1 | 54 | 55.8 | 57.5 | 59.4 |
Top Tube Actual (cm) | 47 | 48.4 | 50.4 | 52.1 | 53.8 | 55.6 |
Head Tube Angle | 70° | 71° | 71° | 71° | 71° | 71° |
Seat Tube Angle | 74.3° | 74.3° | 73.7° | 73.3° | 72.9° | 72.3° |
Standover (cm) | 74.6 | 78.2 | 81.2 | 83.2 | 83.6 | 84.9 |
Head Tube Length (cm) | 8.6 | 10.8 | 13.2 | 15.3 | 17.7 | 19.8 |
Wheelbase (cm) | 99.8 | 100.5 | 102 | 103.4 | 104.9 | 106.2 |
Front Center (cm) | 58.8 | 59.3 | 60.7 | 62.1 | 63.6 | 64.8 |
Chain Stay Length (cm) | 42.2 | 42.2 | 42.2 | 42.2 | 42.2 | 42.2 |
Bottom Bracket Drop (cm) | 7.7 | 7.2 | 6.9 | 6.9 | 6.7 | 6.7 |
Bottom Bracket Height (cm) | 28.3 | 28.8 | 29 | 29 | 29.3 | 29.3 |
Fork Rake (cm) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
Trail (cm) | 7.2 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
Stack (cm) | 51.5 | 53.5 | 55.5 | 57.5 | 59.5 | 61.5 |
Reach (cm) | 36.5 | 37.1 | 37.8 | 38.5 | 39.2 | 39.8 |
Axle to Crown (cm) | 40 | 40 | 40 | 40 | 40 | 40 |
Frame Size | Rider Height (in) |
---|---|
46 | 5'0" - 5'4" |
51 | 5'3" - 5'7" |
54 | 5'5" - 5'9" |
56 | 5'8" - 6'0" |
58 | 5'10" - 6'2" |
61 | 6'0" - 6'4" |
Specs
Frame | SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder |
---|---|
Fork | SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset |
Rims | Reserve 40|44 GR, Carbon, Turbulent Aero tech, 24h, tubeless ready |
Hubs |
Front: DT Swiss 370, 12x100mm centerlockDT Swiss 370, 12x100mm centerlock Rear: DT Swiss 370, 12x142mm centerlock |
Spokes | Sapim CX-Delta J-bend |
Tires | Vittoria Terreno T50, 700x40c, tubeless ready |
Bottom Bracket | Shimano BSA 68 |
Crankset | Shimano RX 820, 48/31 |
Shifters | Shimano GRX 825, Di2, 12-speed |
Front Derailleur | Shimano GRX 825 Di2, braze-on |
Rear Derailleur | Shimano GRX 825, Di2, Shadow RD+ |
Cassette/Freewheel | Shimano Ultegra R8100, 11-34, 12-speed |
Chain | Shimano M8100, 12-speed |
Brakes | Shimano GRX 820, 160/160mm CL800 rotors |
Brake Levers | Shimano GRX Di2 RX825 hydraulic disc |
Handlebars | Vision Trimax Aero Alloy |
Tape/Grips | Cannondale Bar Tape, 3.5mm |
Stem | Cannondale C1 Conceal, Alloy, 31.8, -6° |
Headset | Integrated, 1-1/8" - 1.5" |
Seatpost | Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51-61cm) |
Saddle | Prologo Dimension AGX T4.0 |
Pedals | Sold Separately |
Accessories & Extras | Cannondale Wheel Sensor, Reserve Fillmore valves, Shimano Di2 charger |
* Subject to change without notice.
Videos
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Cashmere / 46cm / 700c | 196870184329 | C17035U1046 | 210000153892 |
Cashmere / 51cm / 700c | 196870184336 | C17035U1051 | 210000153893 |
Cashmere / 56cm / 700c | 196870184350 | C17035U1056 | 210000153895 |
Cashmere / 58cm / 700c | 196870184367 | C17035U1058 | 210000153896 |
