Details

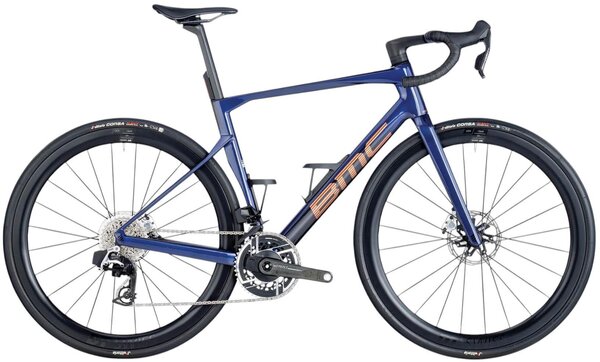

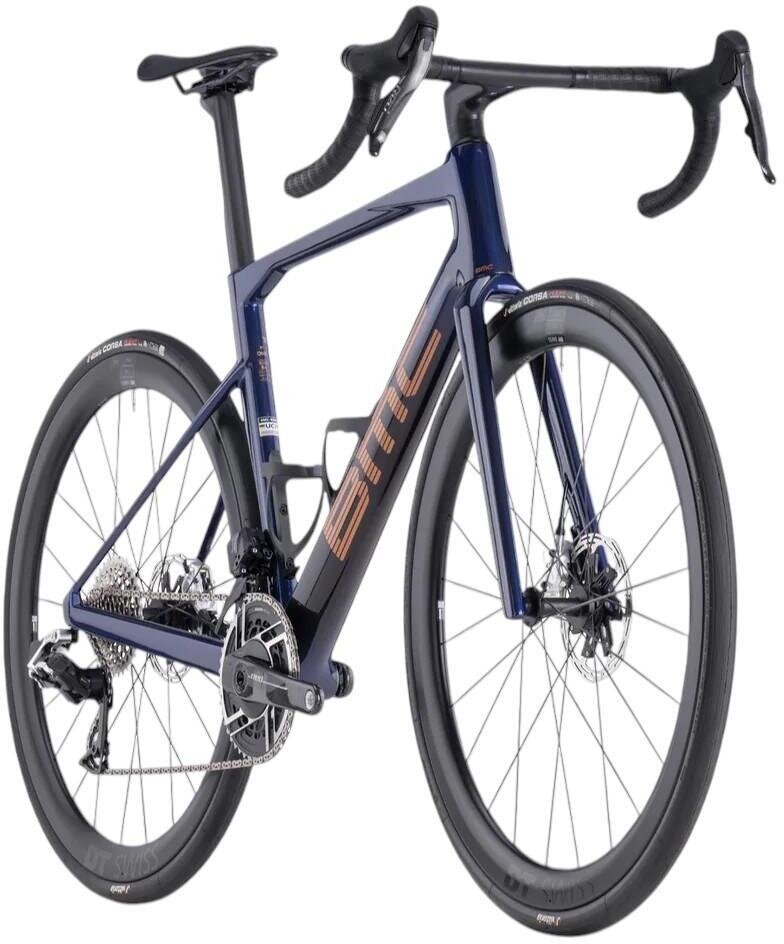

An endurance rocket with a carbon frame, SRAM Red, power meter, DT Swiss ERC wheels, and total control from the BMC ICS Carbon Evo cockpit.

Building upon the legacy of its predecessors, the faster-than-ever Roadmachine 01 combines speed, comfort, and versatility, redefining the ultimate endurance rocket.
Crafted from our premium 01-grade carbon, it takes integration to the next level with sleek cable routing, down tube storage, and a seamlessly integrated rear light for maximum safety on long rides.

Engineered to accommodate larger tires and designed for maximum compliance, it smooths out rough roads while conserving your energy. Comfort has never been this fast.
Equipped with a full SRAM Red groupset, including a power meter, the exceptional DT Swiss ERC wheelset, and our own ICS Carbon Evo one-piece cockpit for unrivaled control, the Roadmachine 01 stands as the flagship of the range – the pinnacle of endurance bikes.

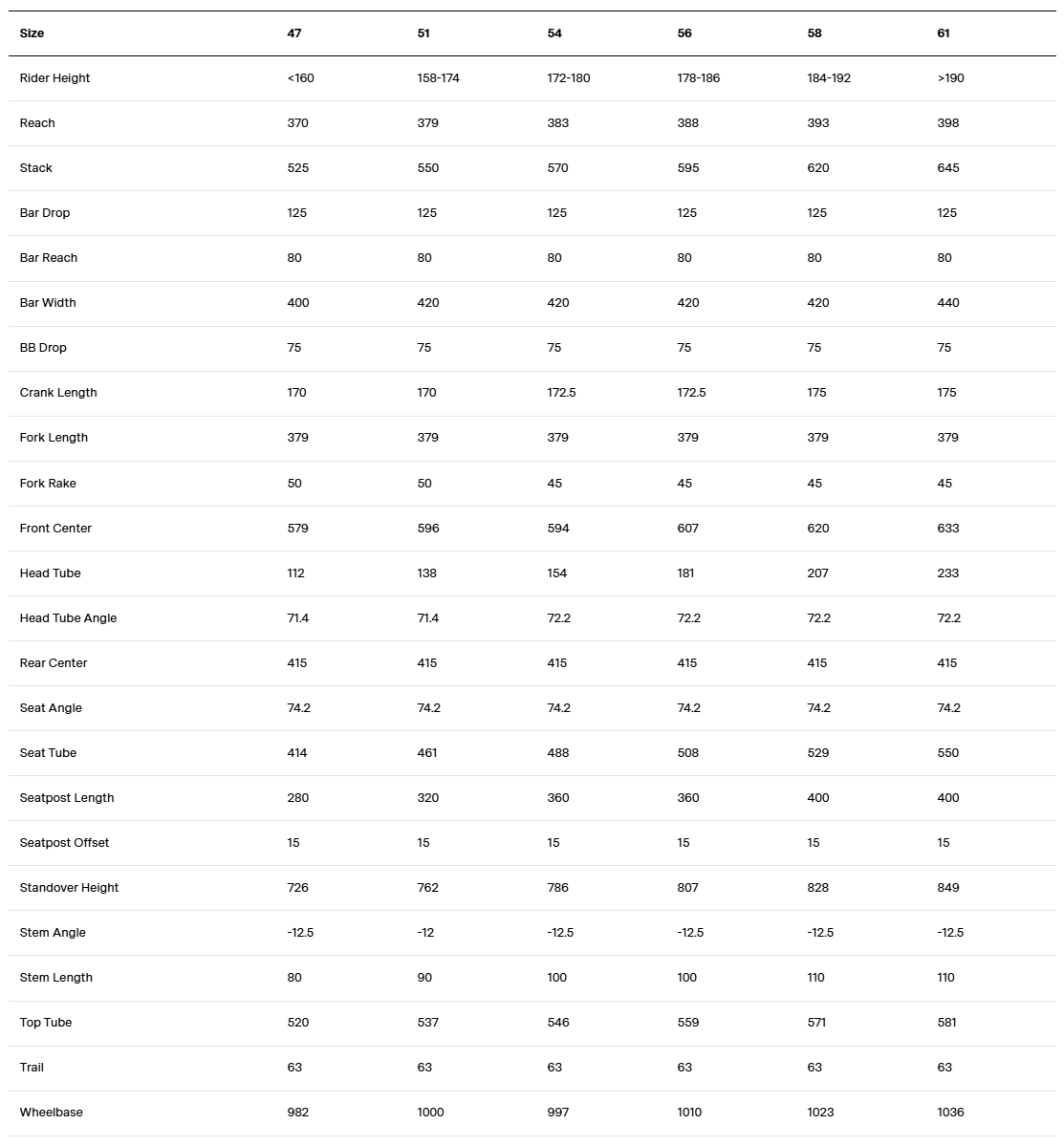

Geometry

Specs

Frame	Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance \| ICS Technology Stealth Cable Routing \| Integrated Downtube Storage \| Stealth Dropout Design \| 12 x 142mm Thru-Axle
Fork	Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance \| ICS Technology stealth cable routing \| Flat Mount Disc \| 12 x 100mm Thru-Axle \| 50mm offset (Size 47-51) 45mm offset (Size 54-61)
Handlebar	ICS Carbon Evo \| One Piece Full Carbon Cockpit \| 127mm drop, 70mm reach, 8° flare
Seatpost	Roadmachine 01 Premium Carbon D-Shaped Seatpost \| 15mm Offset \| D-Fender Compatible
Saddle	Selle Italia Novus Boost Evo Superflow \| CarboKeramic Rail \| 145mm
Crankset	SRAM RED AXS (FC-RED-P-E1)
Chainrings	46-33T
Power Meter	SRAM Red AXS Power Meter (FC-RED-P-E1)
Cassette	SRAM RED (CS-XG-1290-E1)
Cassette Size	10-36T
Chain	SRAM RED (CN-RED-E1)
Front Derailleur	SRAM RED AXS (FD-RED-E-E1)
Rear Derailleur	SRAM RED AXS (RD-RED-E-E1)
Shifters	SRAM RED AXS (ED-RED-E1)
Gears	2 x 12
Bottom Bracket	SRAM Press Fit DUB
Levers/Caliper	SRAM RED AXS (ED-RED-E1)
Rotors	SRAM Paceline X \| Centerlock
Rotor Size (F/R)	160 / 160mm
Rims	DT Swiss ERC 1100 DICUT \| 45mm
Hubs (F/R)	DT Swiss 180 DICUT \| Ratchet EXP 36
Tires	Vittoria Corsa N.EXT \| Tubeless \| 32mm
Tubeless Information	Tubeless Rim \| Tubeless Tires
Tire Clearance	up to "40mm measured" (frameset clearance) but limited to "36mm measured" by the front derailleur
Weight (W/O Pedals)	7.5kg \| Size 54
ASTM Classification	Level 2
System Weight Limit	110kg

* Subject to change without notice.
